Electric cylinder
Stands in the shaft behind the car and does all the lifting itself. No separate motor, no gearbox, no oil.
Every floor, one quiet ride away.
Glass home lifts for G+1 to G+3 houses across India, drawn to your floor heights and installed in 30 days.
About 60 dB on the move, no louder than a conversation, at a calm and steady 0.2 m/s.
One electric cylinder does all the lifting, on 3 kW. No machine room, no work on the roof.
Ground to first floor in champagne aluminium and tinted glass, drawn to the space you have.
The touchscreen in the car shows your floor, takes you to the next one, and opens or closes the doors.

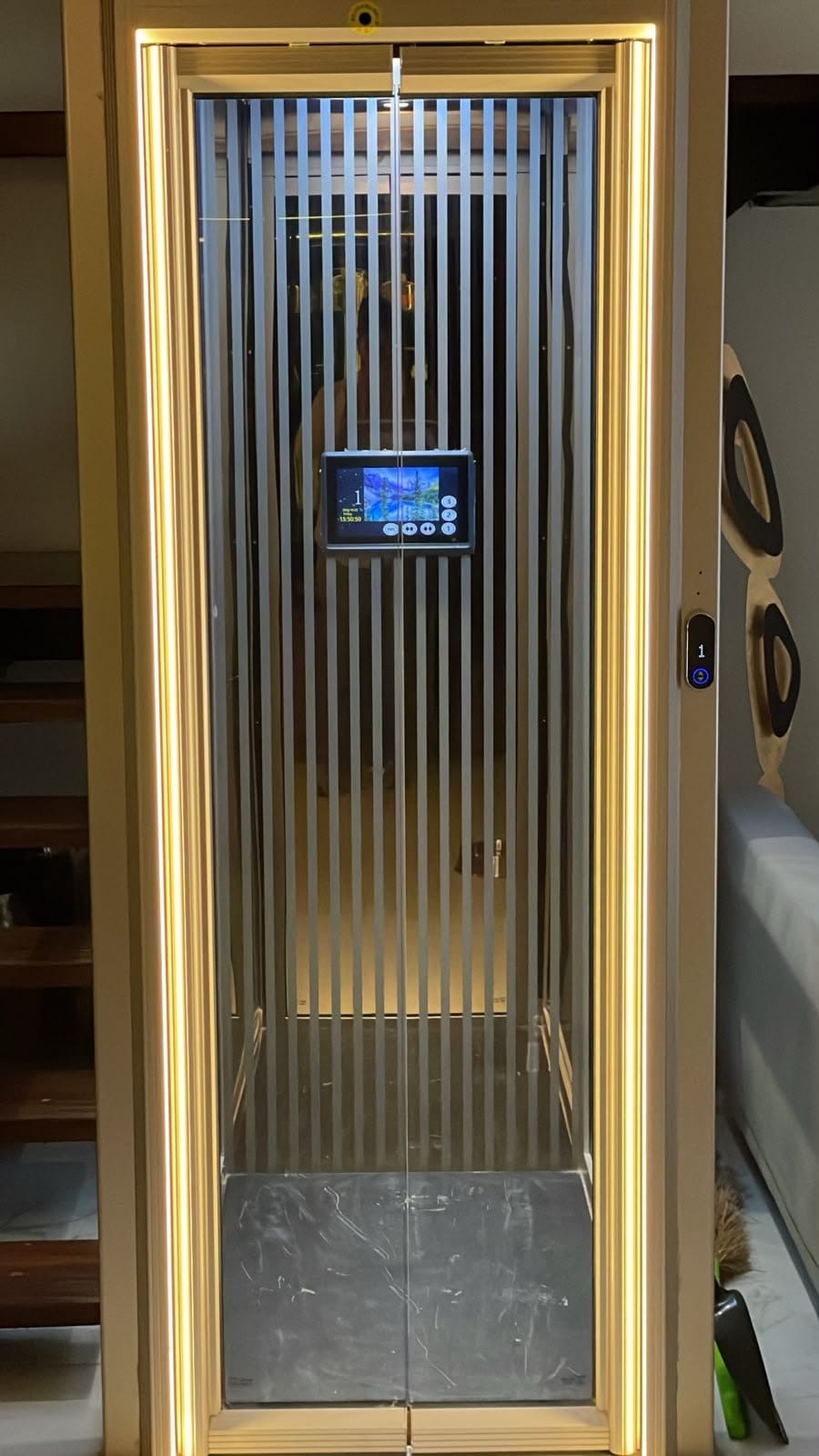

Two glass leaves swing open on their own from a softly lit frame, and close once you’re in.
Glass on every side. Ground to second floor in about half a minute.
The car waits on the second floor, lit, until someone calls it again.

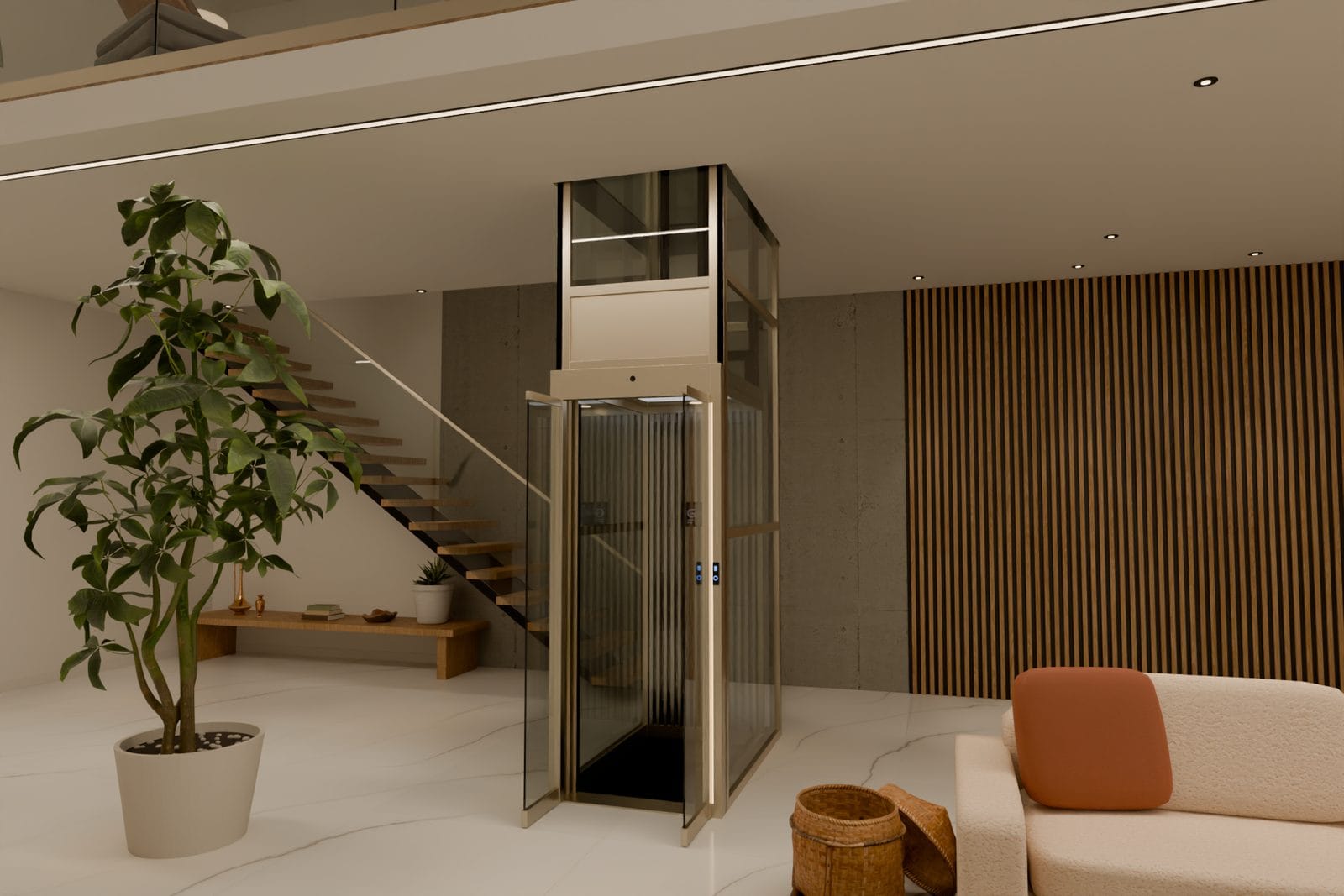

Up to G+3, two stops or four, set to the floor heights of your house.
Made for your home.
Book a site surveyA ride you barely hear.
About 60 dB in travel, no louder than people talking in the room. Calls and conversations carry on while it runs.
Whisper
Library
Talking
The lift
Traffic
60 dBIn travel
As quiet as the conversation inside it.
Ride speed0.2 m/s
Engineered around one cylinder.
No machine room, no oil tank, nothing on the roof.
3 kW

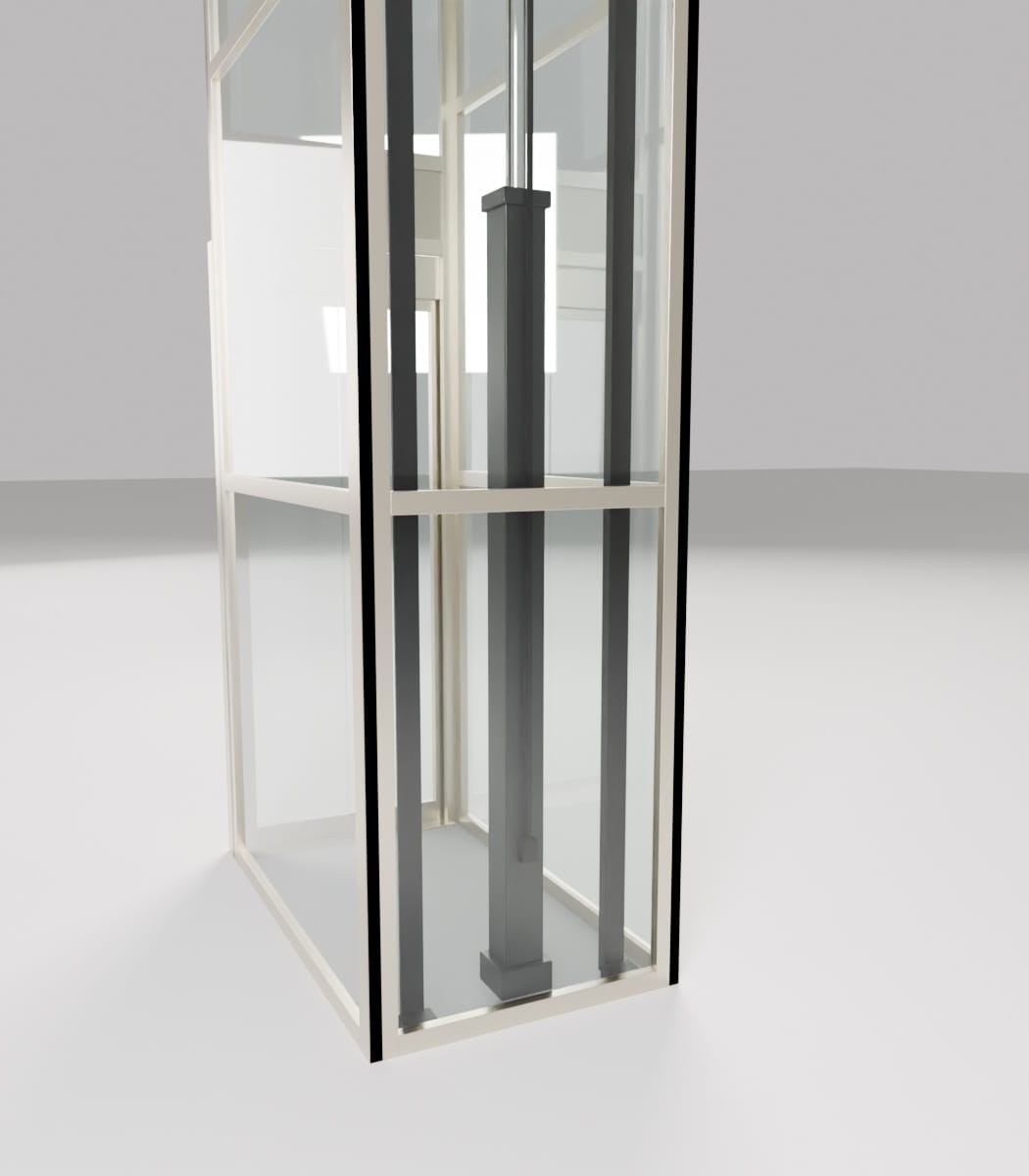

One electric cylinder inside the shaft does all the lifting.
What does the work
The structure, from every side.
Turn the G+1 round: champagne aluminium, tinted glass, and the drive standing in the shaft behind the car.
Technical specifications
From the manufacturer’s spec sheet and our own shaft orders.
Speed
0.2 m/s
A steady ride: ground to second floor in about half a minute.
Stops2–4
Stops, G+1 to G+3, set to your own floor heights.
Installed in30 days
From the shaft going up to the first ride, fitted by our own team.
All the specificationsRide
- Speed
- About 0.2 m/s
- Capacity
- 450 kg
- Noise
- About 60 dB
- Drive
- Electric cylinder
- Power
- 3 kW
- Machine room
- Not needed
Shaft
- Frame
- 75 × 35 mm aluminium, champagne
- Glass
- 5 mm tinted
- Infill
- Aluminium panels
- Size
- Drawn to your house
- Pit
- None: a 5-inch recess sets the car flush with the floor
- Headroom
- Measured at the site survey
Car and doors
- Car walls
- Stainless steel or tempered glass
- Landing doors
- Electric outward swing or manual sliding
- Door opening
- 720 × 2,000 mm, or 1,085 mm on a wide shaft
- Door lighting
- Warm LED strips
- Controls
- Touchscreen panel
Assurance
- Installation
- By Amty’s own team, in 30 days
- Service
- Amty technicians only
- Quality system
- ISO 9001-certified manufacturer
- Warranty
- One year, free
Ready for a lift at home?
Tell us about your house. We’ll call within one working day to book a site survey.
